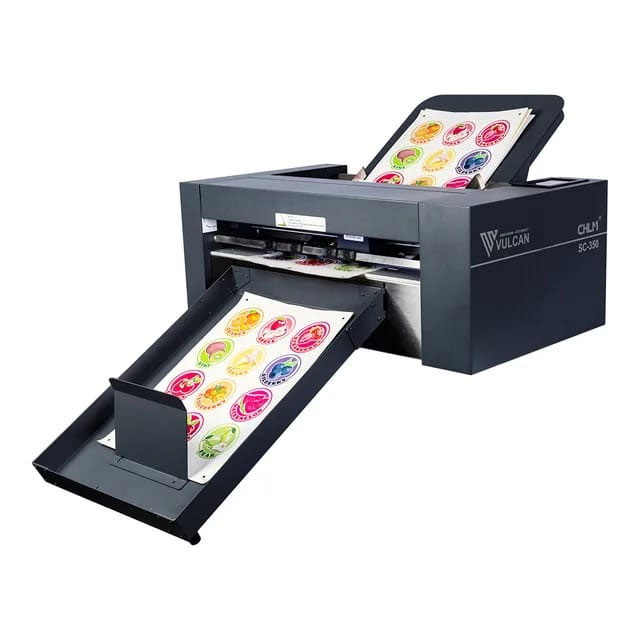

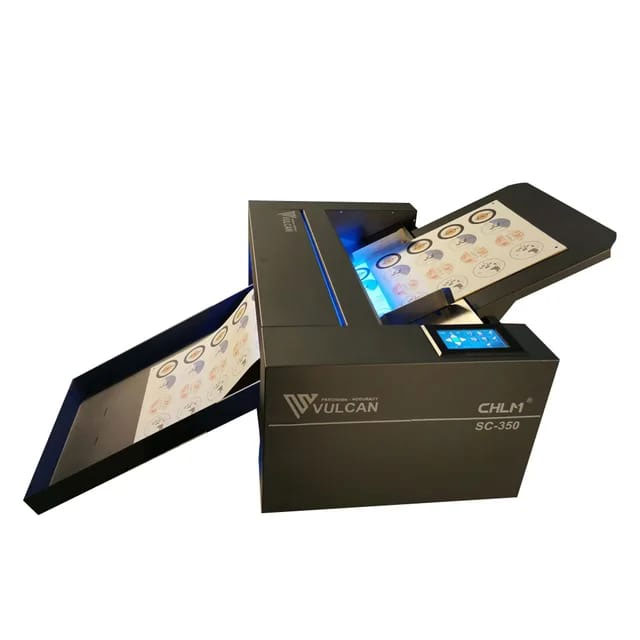

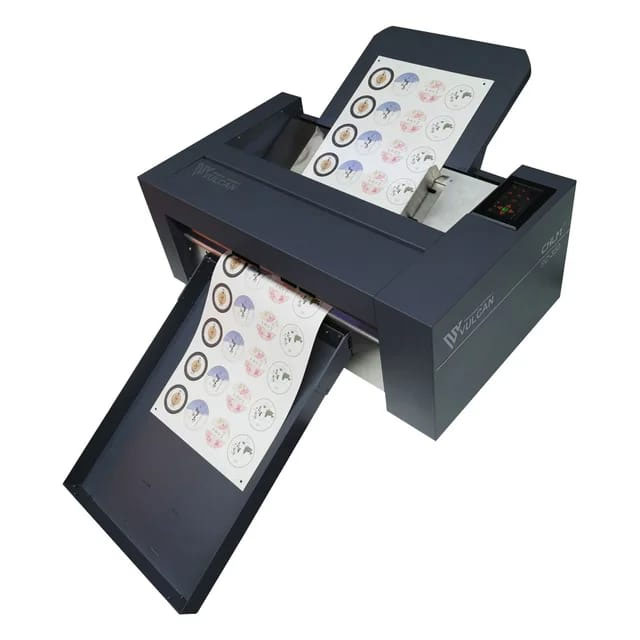

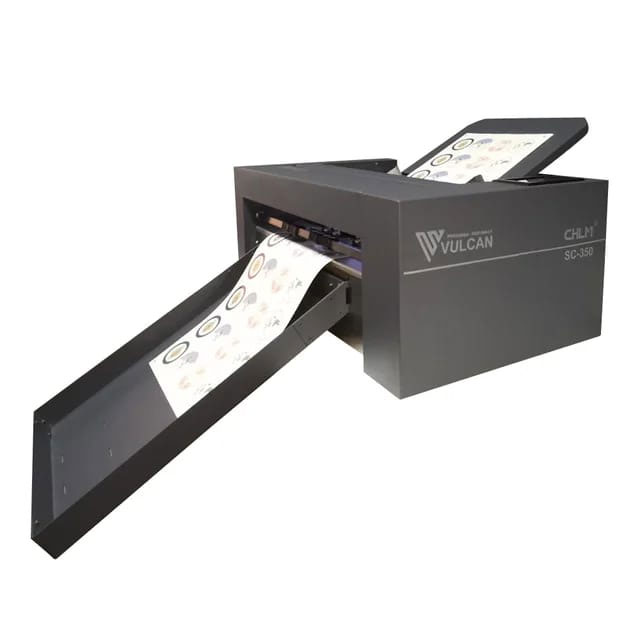

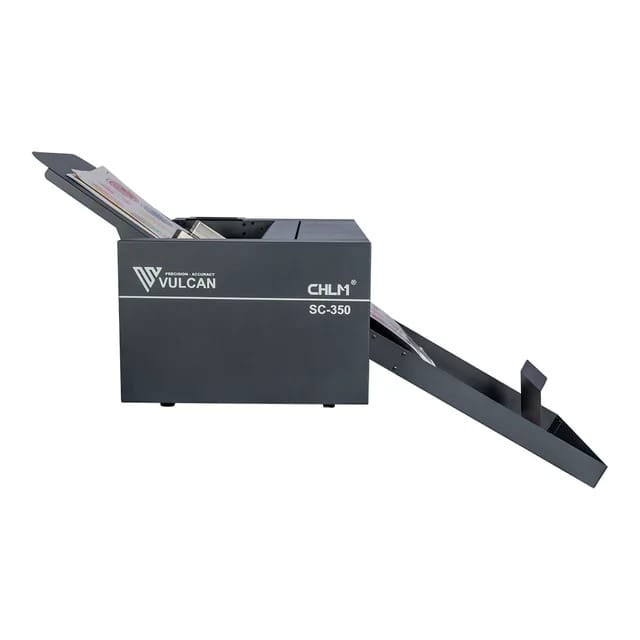

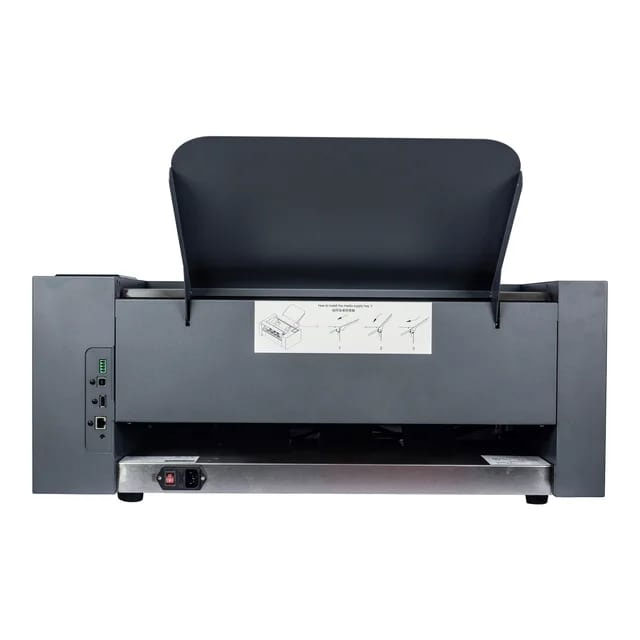

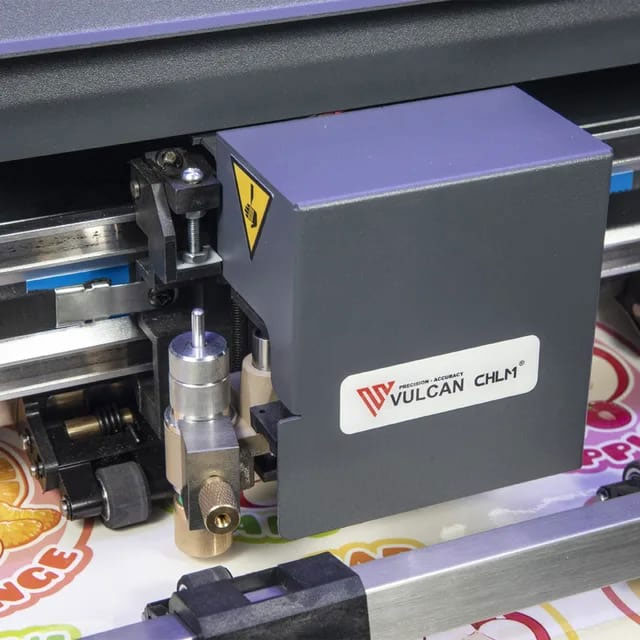

Vulcan sc 350 Digital Die Cutting Sheetfed Machine

Specification

• Item : SC-350
• Configuration : Automatic feeding sheet cutter
• Media size : Width : 185 to 350mm. Length : 150 to 500mm
• A4,A3, 12 x 18 , 13 x 19
• Maximum cutting speed : 1200 mm/s (10 to 1200 mm/s )

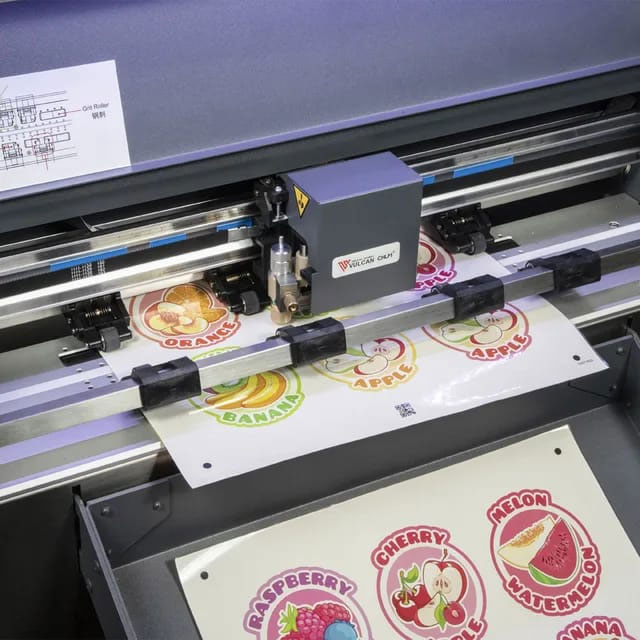

• Registration Sysytem : High Resolution CCD Camera
• Auto Sheet Capacity : 13 x 19 , 200 sheets
• Cutting Motor : Servo Motor
• Max force : 400g
• Minimum character size : Approx. 5 mm square
• Media Thickness : 180gm² - 350g/m
• Feeding time : 2 seconds
• Machincial Resolution : 0.01254 mm
• Standard interfaces : USB2.0 (Full Speed) / U-Flash / Ethernet
• Command sets : HP-GL
• Operating screen : 4.3-inch touch LCD
• Power supply : 100 to 240 V AC, 50/60 Hz (Auto switching)
• Power consumption : 60W
• Operating environment : Temperature : 10 to 35 degree,
• Humidity : 35 to 75% RH (non-condensing)
• External Dimensions(mm) (W × D × H) : Exit tray : 406 x 462 x 186 mm
• Exit tray+Cutter+Media support tray : 1109 x 747 x 594 mm
• Weight : 33kg/36kg
• Packing size : 870 x 550 x 580 MM / 0.28CBM
