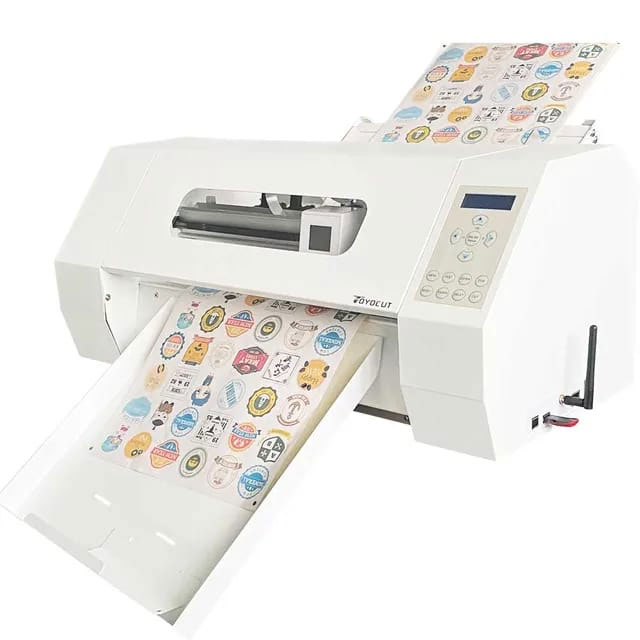

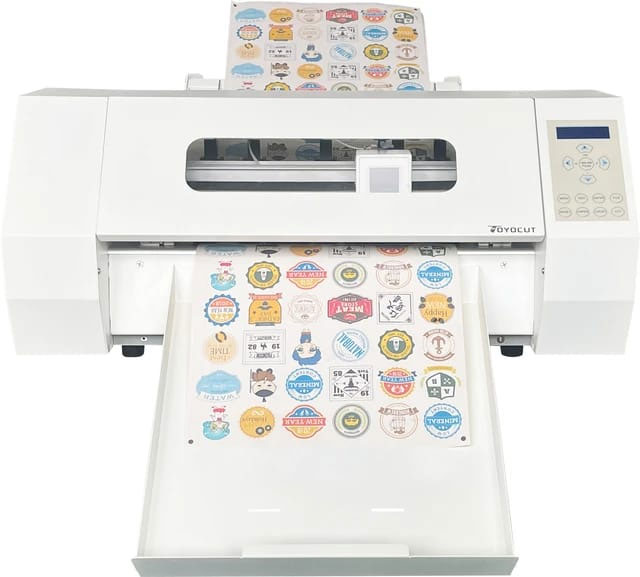

Toyocut C13 pro Digital Die Cutting Sheetfed Machine

• WIFI Transmission
• CDR send directly
• Hold 100 pages of material
• Only 5 blank around material

• 800 g super large knife pressure easy to cut a variety of materials. Up to four interfacese meet different needs of customers
• Materials only needs to be retained 5 mm blank on all sides
• Even if the material is inclined, cutter also cut accurately
• High precision sensor identify mark on various badcground materials

Specification

• MODEL : Smartcut C13 Pro
• Max Media Width : 335 mm
• Max cutting Width : 320 mm
• Mark : 5mm round or L mark for camera
• Blank size : 5 mm blank around the material
• Number of Material : 100 pages/ 18 mm thickness
• Main board : High speed Arithmetic Microprocessor, 32Bit + 18Bit (MCU Dual Core) 1GB cache
• Interface : USB/U DISK/WIFI/LAN
• Control Panel : Thin film switch (life 1 million times)
• Driver : Digital DC, step motor, Micro-step Driver
• Display : 2*16 high resolution LCD+1.7 Inch icd for camera
• Drawing Instruction : DMPL/HP-GL
• Max Cutting Speed : 1200mm/s
• Max Cutting Thickness : 1 mm
• Pressure : 50g-800g (160 grades digital Adjustable)
• Mechanical Precision : 0.25mm
• Repeatable Preceision : <±0.1mm
